Drawing Ray Diagram of a Convex Mirror

Rules in Drawing Ray Diagram

Rule No. 1

A ray towards C is reflected back along its own path.

Rule No. 2

A ray parallel to the principal axis is reflected as if it came from F.

Rule No. 3

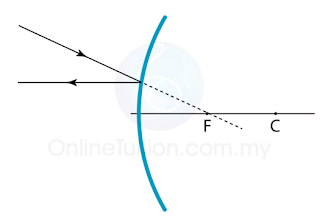

A ray towards F is reflected parallel to the principal axis.
